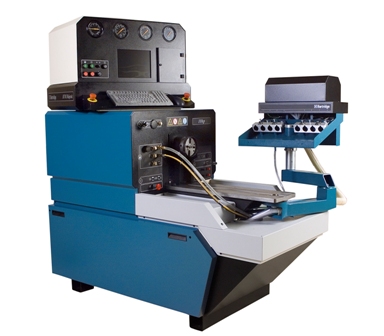

AVM Majestic
Цена:
The AVM Majestic Test Stand has been developed as a premium but affordable solution for testing Rotary and small In-Line pumps offering outstanding functionality.
Main Features
- 10hp high torque motor.
- 8 cylinder advanced video metering.
- 1 kgm2 flywheel.
- Ability to pipe up fuel pumps in any order.
- TFT display of pump output data.
- Ergonomic design.
Benefits
- Compact size and proven user friendly design.
- Rapid update of test results.
- Reduces pump test time by up to 50% in comparison with other branded test stands.
Screen Display
 |
|
Figure 1 AVM Majestic, metering screen display.
|
|
TECHNICAL SPECIFICATION
|
||
Calibration System |
||
| Flat Panel TFT Monitor | 8 cylinder Advanced Video Metering via TFT display with a capacity of 500mm3/stroke. | |
| Measuring Modes | Three measuring modes, calibrate, overcheck and average. | |
| Shot Count | Push button pre-selection in units of 100, 200, 250, 300 or 500 mm3/stroke. | |
| Backleakage | Flowmeter display on LCD screen 15-1200cm3/min. | |
Instrumentation |
||
| Tachometer | ||
| Fuel Supply | Pressure 0 to 4 bar (60lb/in2) | |
| Auxiliary 1 | 7 bar (100lb/in2). | |
| Auxiliary 2 | 11 bar (160lb/in2) | |
| Pressure Phasing | 80 bar (1200 lb/in2). | |
| Test Oil Temp | Digital Display on LCD Screen | |
| Advance | Range +/- 10mm resolution 0.1mm. Units selectable mm, DPA°, DPC°, DP200°, Stanadyne°, Bosch° | |
| Boost Pressure | Range 0 bar to 3 bar. Units selectable bar, MPa, psi, mmHg, mbar, hPa, kPa. | |
Injector Mount |
Quick release injector mount to accommodate ISO4010, and orifice plate test injectors as well as other common types used in the workshop. |
|
Phasing |
Pressure phasing supplied as standard; the phasing angle is shown on the TFT display. | |
Auxiliaries |
Two D.C. supply outlets of 0-25volts at 3 amps which can be parallel connected to give 6 amps. Hours counter displayed via TFT screen. RS232 interface allowing interface to a Printer / PC. |
|
Installation Requirements |
||
| Electrical Supply | 380-480V 50/60Hz 3 Phase (33A maximum) 208 –250V 50/60HZ 3Phase (66A maximum) | |
| Compressed Air | 5 to 7 bar (75 to 100 lb/in2). | |
| Water | 8 l/min (0.75 gal/min) at 1-5 bar pressure at 20°C max temperature. | |
Additional Accessories
- AI29 Test Injector ISO4010
- AI33 Orifice Plate Injector 0.4mm
- AI43 Orifice Plate Injector 0.5mm
- AI44 Orifice Plate Injector 0.6mm
- AI45 Orifice Plate Injector 0.7mm
- AI46 Orifice Plate Injector 0.8mm
- HB373W Dynamic Timing
Ordering
MAJ 108A-AB
Included in the above:
- HB282 Digital Advance
- HB283 Digital Boost
- HF126 Rotary Pump Test Kit
Shipping
| Gross weight: | 1150 kgs |
| Net weight: | 950 kgs |
| Case size: | 191 x 114 x 209 cms |
